Intel Coffee Lake

S

Sam633

PCAXE Addicted
Učlanjen(a)
13.11.2012.
Poruka
1.286
Rezultat reagovanja
26
Moja konfiguracija

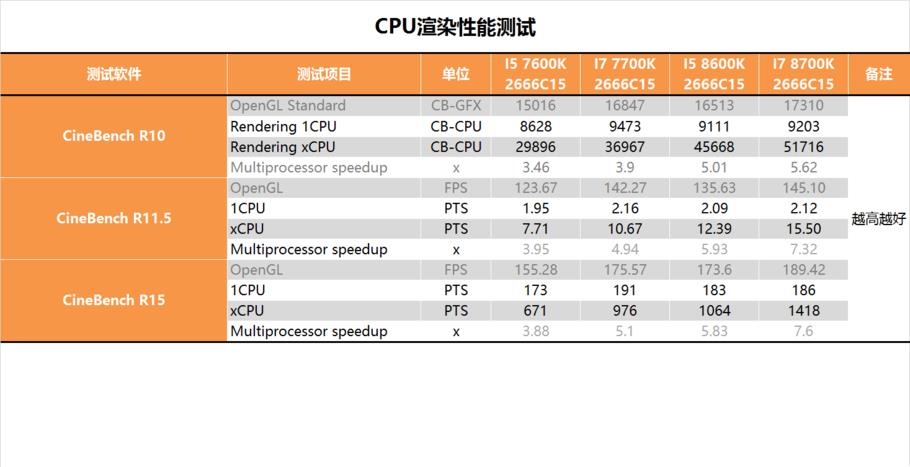

老板加俩蛋！Intel八代酷睿i7-8700K/i5-8600K最详尽评测-Intel,Coffee Lake,八代酷睿,i7-8700K,i5-8600K,评测-驱动之家

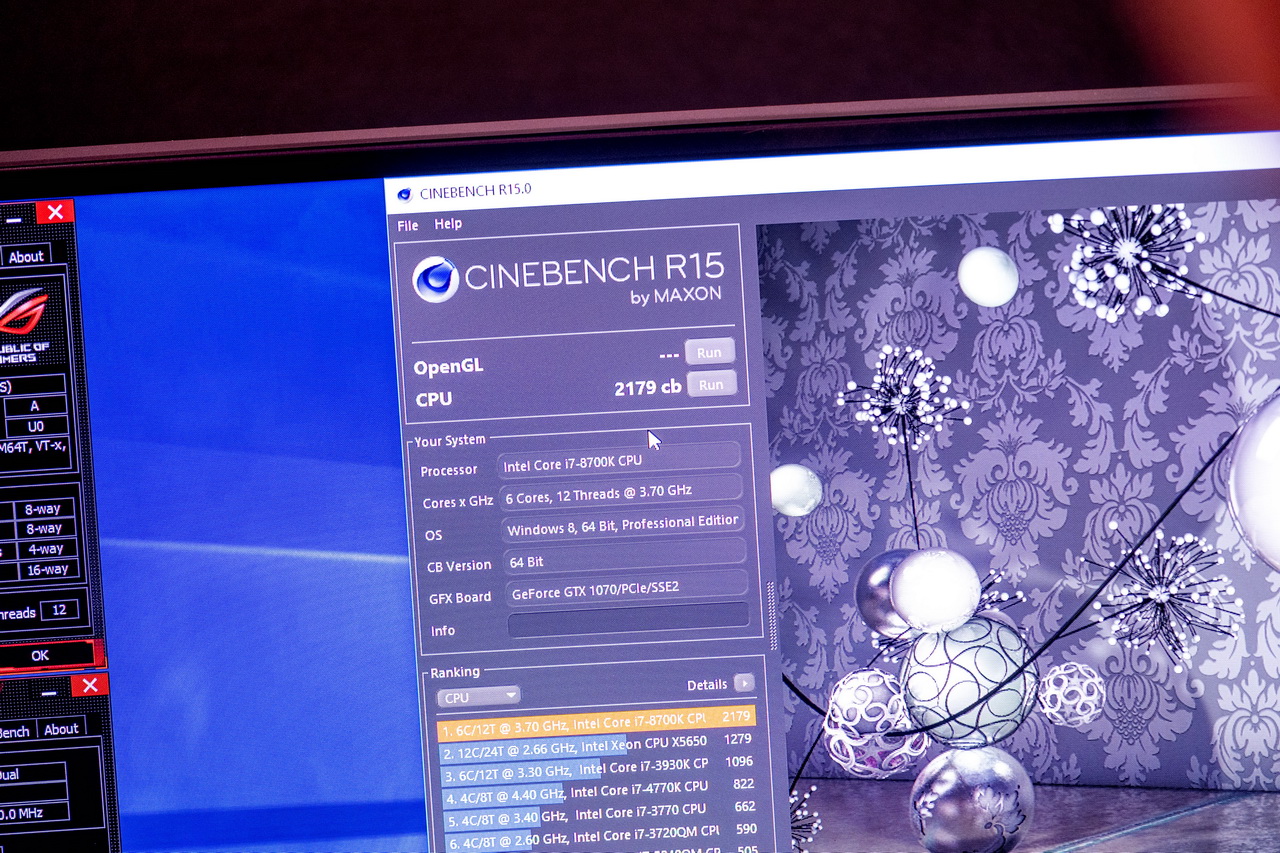

Možda najvažnije od svega:

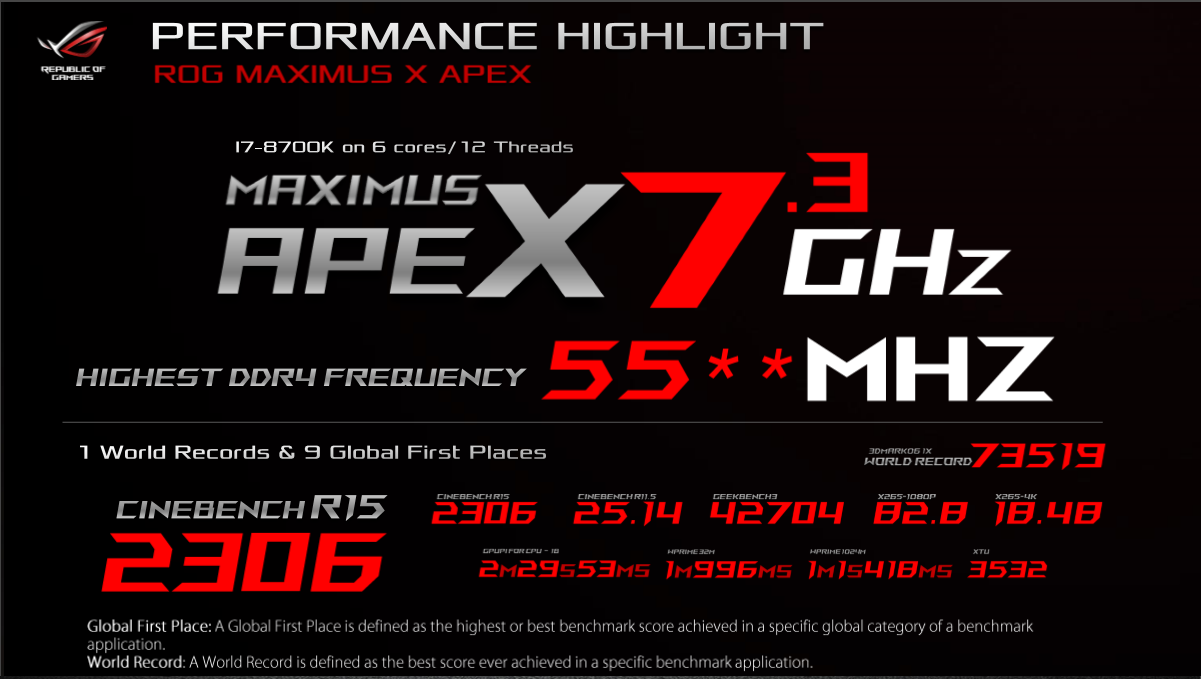

Plus:



Overclock:



Google translate u akciji:

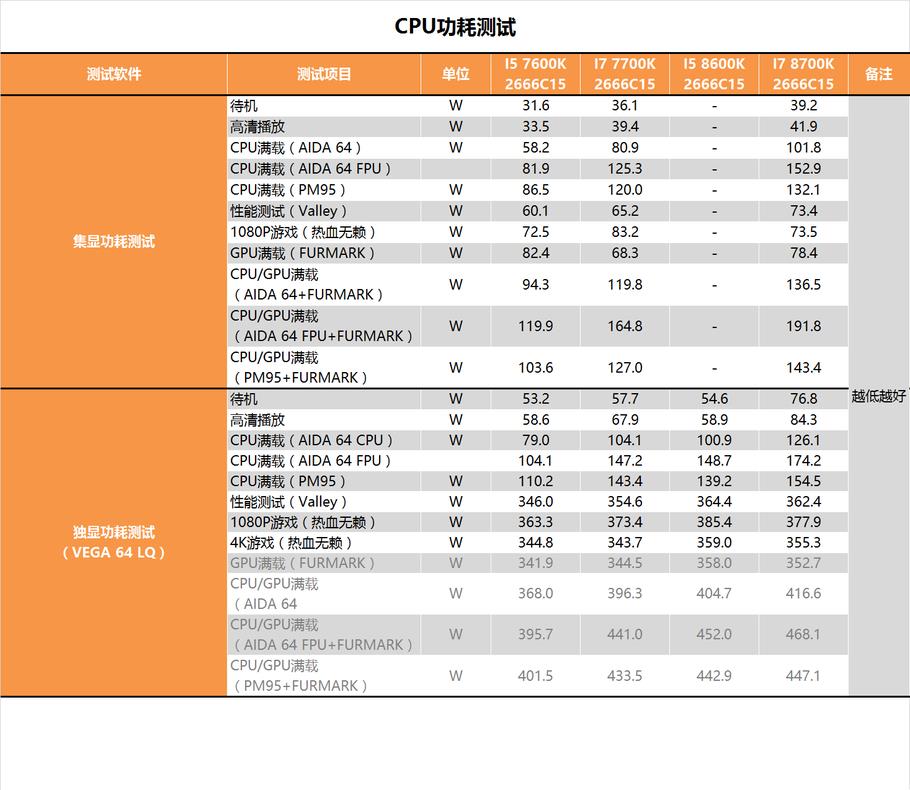

About CPU power consumption:

Power consumption, the eight generations of Core's energy consumption than the more obvious improvement, and the core area becomes larger, relatively i5 will be more stable.

However, the 8700K also need to hit a question mark, according to the current test when the voltage exceeds 1.25V, the core heat will be more difficult to completely conduction.

So there will be two problems: i7 if the physical poor, then the full load of 6 core is likely to reach the highest Core frequency, and overclocking, then the voltage exceeds 1.25V may have overheated problems.

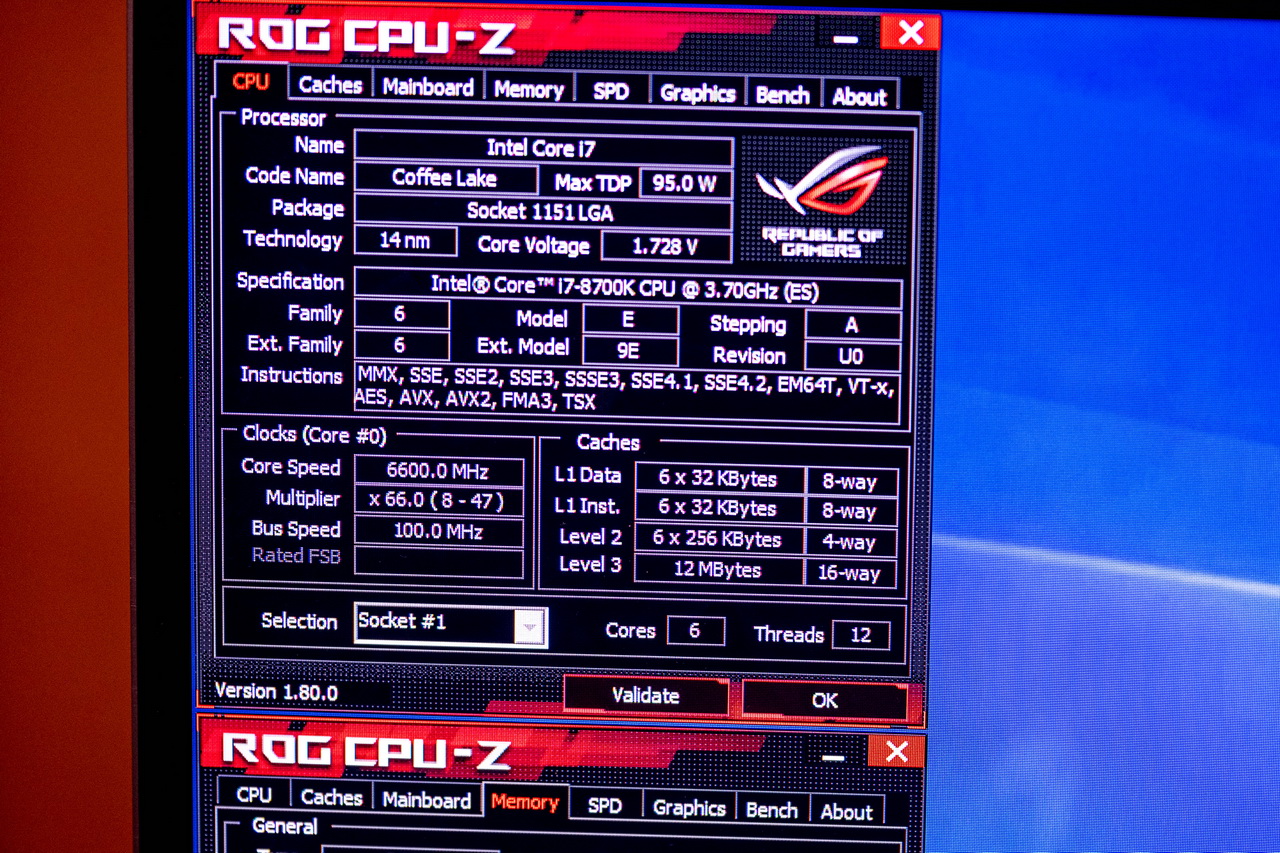

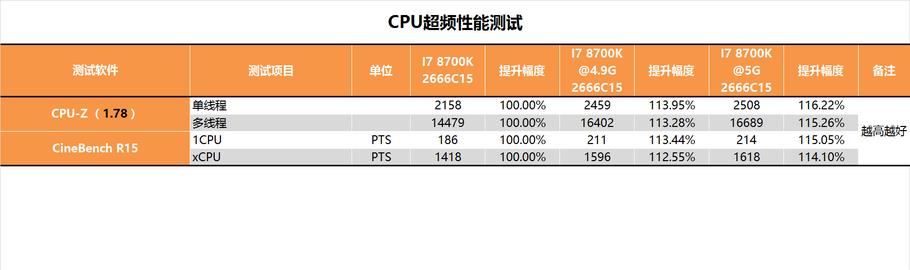

Simple overclocking on the CPU:

Here on the 8700K to do a little overclocking, the hands of this constitution is quite good, a key overclocking 4.9G, the voltage does not exceed 1.25V. Manual overclocking 5G, voltage 1.3V will be able to run multi-threaded test. Overclocked to 5G can generally increase about 15%.

It should be noted that the voltage is more than 1.25V will encounter TDP wall, this time on the need to manually increase the TDP limit, which is set in the motherboard BIOS, 1.3V recommended to set to 180 or so.

But this is a risk, CPU power consumption will be high, CPU baked machine power consumption will be more than 200W, air-cooled obvious pressure.
Kliknite za proširenje...
According to the current known situation, 8700K should be priced between 2900 ~ 3000 yuan, 8600K pricing should be 1500 ~ 1700 yuan, 8100 is said to be 900 ~ 1000 yuan. Feeling or i5 relatively more purchase value.
Kliknite za proširenje...

Poslednja izmena:
Till iCollapse

Till iCollapse

PCAXE Apprentice
Učlanjen(a)
08.09.2017.
Poruka
62
Rezultat reagovanja
1
Moja konfiguracija
d0minat0r

d0minat0r

PCAXE OC team
Učlanjen(a)
01.04.2009.
Poruka
3.633
Rezultat reagovanja
58
Moja konfiguracija
VGA & cooler:
Gainward 4850 512DDR3
Display:
Viewsonic 24"
HDD:
seagate 500Gt Single P
Case:
/
Optical drives:
Samsung 203D
Mice & keyboard:
A4tech oscar X 748K i microsoft ergo natural 4000
Internet:
ADSL 4Mbit
OS & Browser:
WIN7
Ne zuri sa kupovinom cene 7700k ce 90% pojeftiniti. 8700k nije nista losiji od 7700K ima dva jezgra vise zato ce biit vrv mozda malo skuplji od 7700k naravno da se 6/12 vise trosi greje i se i ostalo sve je to normalno i ocekivano. Uvek su ljudi do sada kukali na novu platformu pa je to i sada slucaj a nova je opet uvek bila ovako ili onako bolja od stare i tesko da se ima rezna uzimati staru platofrmu.

S

Sam633

PCAXE Addicted
Učlanjen(a)
13.11.2012.
Poruka
1.286
Rezultat reagovanja
26
Moja konfiguracija
Till iCollapse je napisao(la):
Auu ovo nije vredno overklokovati uopste ako jede ovoliko. Em sto sam skoro uzeo noctu-u kuler ne bih ni sa njom mogao klokovati 8700, sad duboko razmisljam da porucim 7700 ..
Kliknite za proširenje...
Hajde da pogledamo stvari na default-u.

Mogu da zaključim, par stvari.

Novi proizvodni proces, doneo je uštedu u jednocifrenom procentu, gotovo sigurno. Recimo 5%. (Manimo se intelovog marketinga)

Najveće ušteda je ostvarena u nižem radnom taktu, samim tim i vuče manje struje. I nešto niži napon, moguće, u odnosu do sada. Ušteda je, recimo, između 10 i 20 procenata. Zaokružimo na 15%.

Kad pogledamo potrošnju sa ovog azijiskog sajta, vidmo da je nešto veća od 7700K, za otprilike, tu i tamo, 10-20%. I ovde možemo uzeti sredinu od 15%.

5+15+15=35%

Dođemo da upravo ta otprilike razlika, baš odgovara odnosu jezgara 8700K i 7700K.

d0minat0r

d0minat0r

PCAXE OC team
Učlanjen(a)
01.04.2009.
Poruka
3.633
Rezultat reagovanja
58
Moja konfiguracija
VGA & cooler:
Gainward 4850 512DDR3
Display:
Viewsonic 24"
HDD:
seagate 500Gt Single P
Case:
/
Optical drives:
Samsung 203D
Mice & keyboard:
A4tech oscar X 748K i microsoft ergo natural 4000
Internet:
ADSL 4Mbit
OS & Browser:
WIN7

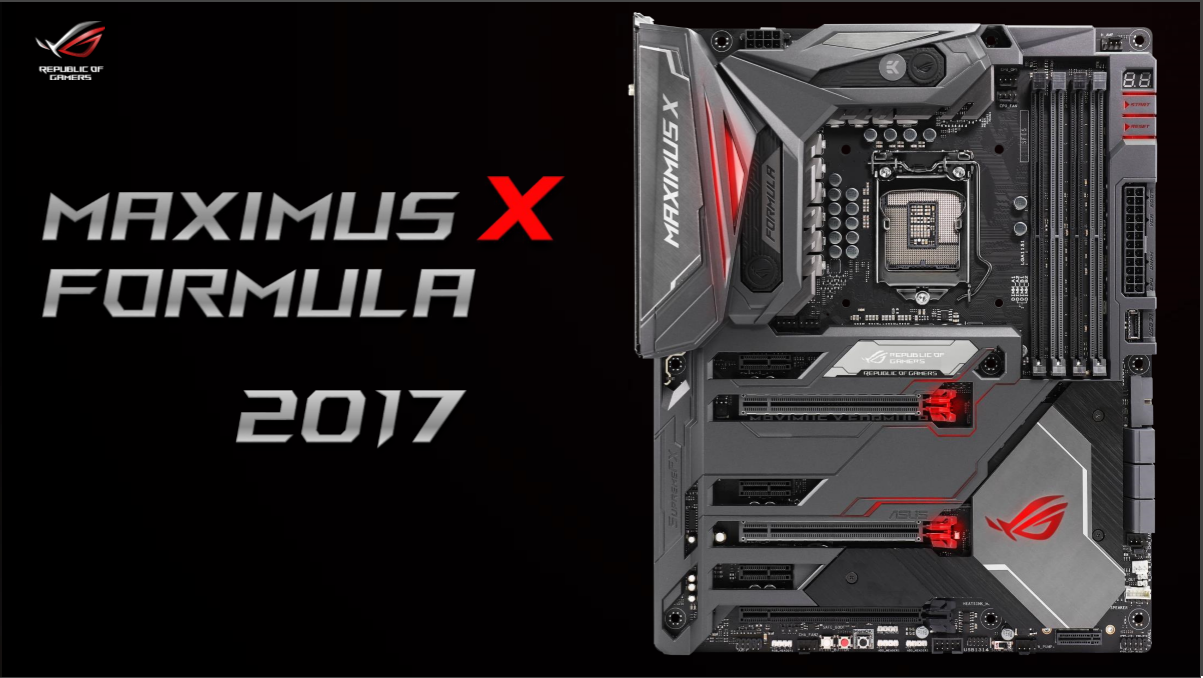

Da da nazlost potvrdjeno mi je sa vise strana da Z370 formule nece biti. Upravo i najtacniji preske jeste ustedelo se na na procesu i to je omogucilo dodavanje jos dva jezgra. IPC je ostao na istom nivou

S

Sam633

PCAXE Addicted
Učlanjen(a)
13.11.2012.
Poruka
1.286
Rezultat reagovanja
26
Moja konfiguracija
Koliko se uštedelo?

Ili moja gornja računica nije dobra?

Gulftown

Gulftown

PCAXE OC team
Učlanjen(a)
23.01.2011.
Poruka
6.728
Rezultat reagovanja
1.536
Moja konfiguracija
PC / Laptop Name:
ASUS ROG G73Jh
CPU & cooler:
R5 5900X EK Water Cooling - i7 990X - R5 3600
Motherboard:
X570 Crosshair VIII Hero WiFI - Asus Rampage III Black Edition - AsRock Fatal1ty B450 Gaming-ITX/ac
RAM:
G.Skill TridentZ 4000 2x8Gb - Corsair Dominator 6x2Gb - 2x8Gb ADATA
VGA & cooler:
6900XT Waterforce - MSI Lightning 7970 CrossFire - GT 1030
Display:
ROG STRIX XG43VQ
HDD:
Samsung 970 Evo Plus 1TB x2 - Samsung EVO 250GB -Samsung EVO 250GB - 8TB WD Purple, 2TB WD Green
Case:
Lian Li 011 Dynamic - Bench Table - Fractal Node 304
PSU:
Cooler Master V1000 - Cooler Master V1200 - CM 500W
Mice & keyboard:
MX Master 3, HyperX Alloy Elite RGB Cherry MX Blue
OS & Browser:
Windows 10
Videce se tek, ali najverovatnije nece biti napretka u brzini uopste, dodata dva jezgra i to je ono sto ja ocekujem.

Sent from my SM-G925F using Tapatalk

Gulftown

Gulftown

PCAXE OC team
Učlanjen(a)
23.01.2011.
Poruka
6.728
Rezultat reagovanja
1.536
Moja konfiguracija
PC / Laptop Name:
ASUS ROG G73Jh
CPU & cooler:
R5 5900X EK Water Cooling - i7 990X - R5 3600
Motherboard:
X570 Crosshair VIII Hero WiFI - Asus Rampage III Black Edition - AsRock Fatal1ty B450 Gaming-ITX/ac
RAM:
G.Skill TridentZ 4000 2x8Gb - Corsair Dominator 6x2Gb - 2x8Gb ADATA
VGA & cooler:
6900XT Waterforce - MSI Lightning 7970 CrossFire - GT 1030
Display:
ROG STRIX XG43VQ
HDD:
Samsung 970 Evo Plus 1TB x2 - Samsung EVO 250GB -Samsung EVO 250GB - 8TB WD Purple, 2TB WD Green
Case:
Lian Li 011 Dynamic - Bench Table - Fractal Node 304
PSU:
Cooler Master V1000 - Cooler Master V1200 - CM 500W
Mice & keyboard:
MX Master 3, HyperX Alloy Elite RGB Cherry MX Blue
OS & Browser:
Windows 10

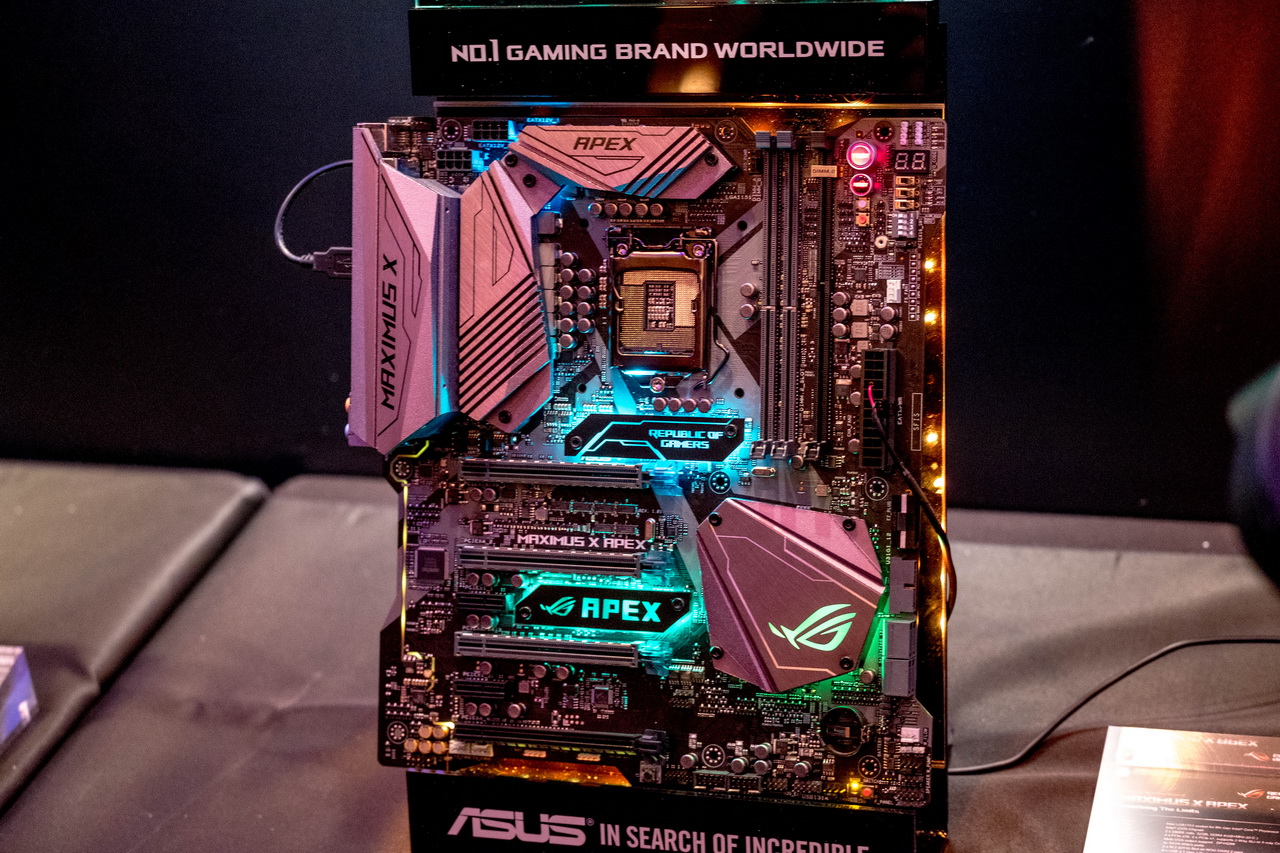

@Sam633, nije on mislio na tu formulu. Prava i jedina formula je AsRock OC Formula :)

Apex nas samo interesuje od Asusa i to je odlicna ploca.

Sent from my SM-G925F using Tapatalk

Bor1s

Bor1s

PCAXE Addicted
Učlanjen(a)
10.03.2014.
Poruka
1.276
Rezultat reagovanja
67
Moja konfiguracija
CPU & cooler:
i7 4770K / NZXT Kraken X62
Motherboard:
ASUS Maximus VII Ranger
RAM:
16GB (2x8GB) 2400MHz HyperX Beast
VGA & cooler:
Gigabyte GTX 1070 G1 Gaming
Display:
Dell UP2716D 27''
HDD:
Samsung 850 Evo 250GB / Samsung 850 Evo 500GB / WD Green 2TB
Sound:
ROG SupremeFX / Objective2 AMP+DAC / AKG K612 Pro / Beyerdynamic DT880 600 Ohm Edition
Case:
Fractal Design Define R5
PSU:
SeaSonic X-850 850W
Optical drives:
Asus neki
Mice & keyboard:
CM Storm Quickfire Ultimate / Logitech G400s
Internet:
Optika 30 Mbit/s
OS & Browser:
Win 8.1 Pro / Chrome

Gulftown

Gulftown

PCAXE OC team
Učlanjen(a)
23.01.2011.
Poruka
6.728
Rezultat reagovanja
1.536
Moja konfiguracija
PC / Laptop Name:
ASUS ROG G73Jh
CPU & cooler:
R5 5900X EK Water Cooling - i7 990X - R5 3600
Motherboard:
X570 Crosshair VIII Hero WiFI - Asus Rampage III Black Edition - AsRock Fatal1ty B450 Gaming-ITX/ac
RAM:
G.Skill TridentZ 4000 2x8Gb - Corsair Dominator 6x2Gb - 2x8Gb ADATA
VGA & cooler:
6900XT Waterforce - MSI Lightning 7970 CrossFire - GT 1030
Display:
ROG STRIX XG43VQ
HDD:
Samsung 970 Evo Plus 1TB x2 - Samsung EVO 250GB -Samsung EVO 250GB - 8TB WD Purple, 2TB WD Green
Case:
Lian Li 011 Dynamic - Bench Table - Fractal Node 304
PSU:
Cooler Master V1000 - Cooler Master V1200 - CM 500W
Mice & keyboard:
MX Master 3, HyperX Alloy Elite RGB Cherry MX Blue
OS & Browser:
Windows 10
Apex samo da bude isti kao i IX i odlicno! Na Apexu IX nista ne bih menjao, ploca stvorena za LN2 klokovanje.

Sent from my SM-G925F using Tapatalk

Bor1s

Bor1s

PCAXE Addicted
Učlanjen(a)
10.03.2014.
Poruka
1.276
Rezultat reagovanja
67
Moja konfiguracija
CPU & cooler:
i7 4770K / NZXT Kraken X62
Motherboard:
ASUS Maximus VII Ranger
RAM:
16GB (2x8GB) 2400MHz HyperX Beast
VGA & cooler:
Gigabyte GTX 1070 G1 Gaming
Display:
Dell UP2716D 27''
HDD:
Samsung 850 Evo 250GB / Samsung 850 Evo 500GB / WD Green 2TB
Sound:
ROG SupremeFX / Objective2 AMP+DAC / AKG K612 Pro / Beyerdynamic DT880 600 Ohm Edition
Case:
Fractal Design Define R5
PSU:
SeaSonic X-850 850W
Optical drives:
Asus neki
Mice & keyboard:
CM Storm Quickfire Ultimate / Logitech G400s
Internet:
Optika 30 Mbit/s
OS & Browser:
Win 8.1 Pro / Chrome

d0minat0r

d0minat0r

PCAXE OC team
Učlanjen(a)
01.04.2009.
Poruka
3.633
Rezultat reagovanja
58
Moja konfiguracija
VGA & cooler:
Gainward 4850 512DDR3
Display:
Viewsonic 24"
HDD:
seagate 500Gt Single P
Case:
/
Optical drives:
Samsung 203D
Mice & keyboard:
A4tech oscar X 748K i microsoft ergo natural 4000
Internet:
ADSL 4Mbit
OS & Browser:
WIN7
Racunica ti je dobra. Znaci manji proizvodni proces je taman doneo toliki napredak da ubace jos dva jezgra naravno da ryzen nije uspesan jos mi ne bi videli 6/12 ali eto intel malo doda gas i stigne sta treba. AMD jos ovako da nastavi i svima ce biti bolje :) Da da kada kazem Formula mislim na OC formulu :d. Kako god i za Z370 vrv ce maximus X APEX vladati suvereno sto opet ne valjda jedan vendor toliko vlada ali boze moj mozda se neko trgne.

d0minat0r

d0minat0r

PCAXE OC team
Učlanjen(a)
01.04.2009.
Poruka
3.633
Rezultat reagovanja
58
Moja konfiguracija
VGA & cooler:
Gainward 4850 512DDR3
Display:
Viewsonic 24"
HDD:
seagate 500Gt Single P
Case:
/
Optical drives:
Samsung 203D
Mice & keyboard:
A4tech oscar X 748K i microsoft ergo natural 4000
Internet:
ADSL 4Mbit
OS & Browser:
WIN7
Gulftown

Gulftown

PCAXE OC team
Učlanjen(a)
23.01.2011.
Poruka
6.728
Rezultat reagovanja
1.536
Moja konfiguracija
PC / Laptop Name:
ASUS ROG G73Jh
CPU & cooler:
R5 5900X EK Water Cooling - i7 990X - R5 3600
Motherboard:
X570 Crosshair VIII Hero WiFI - Asus Rampage III Black Edition - AsRock Fatal1ty B450 Gaming-ITX/ac
RAM:
G.Skill TridentZ 4000 2x8Gb - Corsair Dominator 6x2Gb - 2x8Gb ADATA
VGA & cooler:
6900XT Waterforce - MSI Lightning 7970 CrossFire - GT 1030
Display:
ROG STRIX XG43VQ
HDD:
Samsung 970 Evo Plus 1TB x2 - Samsung EVO 250GB -Samsung EVO 250GB - 8TB WD Purple, 2TB WD Green
Case:
Lian Li 011 Dynamic - Bench Table - Fractal Node 304
PSU:
Cooler Master V1000 - Cooler Master V1200 - CM 500W
Mice & keyboard:
MX Master 3, HyperX Alloy Elite RGB Cherry MX Blue
OS & Browser:
Windows 10
Lepotica, samo odmah isključimo RGB jadni i teraj :D

Sent from my SM-G925F using Tapatalk

Gulftown

Gulftown

PCAXE OC team
Učlanjen(a)
23.01.2011.
Poruka
6.728
Rezultat reagovanja
1.536
Moja konfiguracija
PC / Laptop Name:
ASUS ROG G73Jh
CPU & cooler:
R5 5900X EK Water Cooling - i7 990X - R5 3600
Motherboard:
X570 Crosshair VIII Hero WiFI - Asus Rampage III Black Edition - AsRock Fatal1ty B450 Gaming-ITX/ac
RAM:
G.Skill TridentZ 4000 2x8Gb - Corsair Dominator 6x2Gb - 2x8Gb ADATA
VGA & cooler:
6900XT Waterforce - MSI Lightning 7970 CrossFire - GT 1030
Display:
ROG STRIX XG43VQ
HDD:
Samsung 970 Evo Plus 1TB x2 - Samsung EVO 250GB -Samsung EVO 250GB - 8TB WD Purple, 2TB WD Green
Case:
Lian Li 011 Dynamic - Bench Table - Fractal Node 304
PSU:
Cooler Master V1000 - Cooler Master V1200 - CM 500W
Mice & keyboard:
MX Master 3, HyperX Alloy Elite RGB Cherry MX Blue
OS & Browser:
Windows 10
Proday

Proday

PCAXE Addicted
Učlanjen(a)
01.04.2009.
Poruka
2.831
Rezultat reagovanja
103
Moja konfiguracija
PC / Laptop Name:
Toshiba A500 1GH
CPU & cooler:
i5 430M
Motherboard:
Intel HM55
RAM:
2x4GB DDR3
VGA & cooler:
G-Force 330M
Display:
Samsung 32"
HDD:
SSD Crucial M4 512gb
Sound:
Integrated
Case:
Belo 16 inca
PSU:
Neko 220V
Optical drives:
Blue ray RW
Mice & keyboard:
Razer DeathAdder i MS4000
Internet:
Telekom Adsl 10/1
OS & Browser:
Windows 8 Ent x64
Other:
HTC Desire S
Boles totalna!! :d

Sent from my SM-G950F using Tapatalk
